20 kw turbine for current converters

2 blades
3 blades

Overall dimensions, in mm:

Length
Width
Height
Weight (with the 3 m propeller)
1160
438
479
320 kg

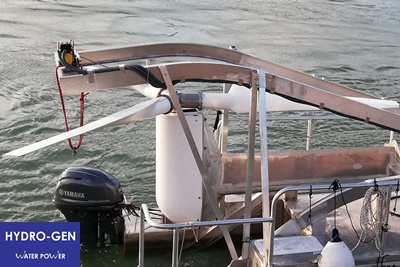

Side view
Rear view



Nota :

The turbine can easily be upgraded by mounting 4 m, or 5m diameter blades instead of the 3 m ones. This operations can be completed in few minutes by keeping the same propeller hub. It is particularly usefull while the current velocity lower during the dry season.

Control:

The turbine has water inlet and temperature warnings. All the parameters are possibly remotelly checked (V, I, P, Fq, N, Vc).

Installing

The turbine can be installed on various supports :

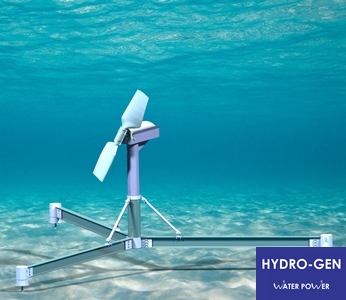

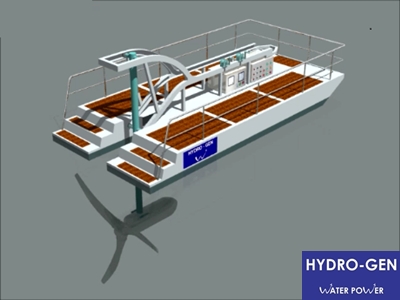

Below a floatting dedicated barge includng an integrated device to get it out of the water and up on the deck ("Hydro-Gen" type) On a frame or a pile set on the bottom of the sea or river. On a quay, une bridge pile, below a barge or a pontoon, etc



Good to know:

The turbine is sent, packed with instructions for assembly, operations and maintenance.

Spare parts, service for mounting, installing, training, repair and maintenance are on option.

Packaging: The turbine is delivered in a wood box for international transportation. Box dimensions, in cm: 178 x 113 x 97.

Total weight (including spare parts): 530 kg.
